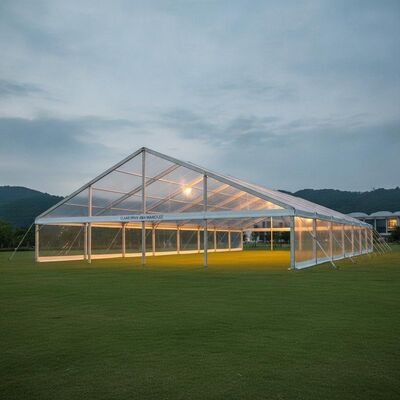

Extra Large Clear Span 40m Marquee Tent with 850gsm PVC and Aluminum Alloy 6061/T6 Frame

All Category

Party Tent Accessories

Miss. Amanda Chan

amanda@marquees-tent.com

0086 13640286461

Contact Now

Extra Large Clear Span 40m Marquee Tent with 850gsm PVC and Aluminum Alloy 6061/T6 Frame

Brand Name:	Tendars
Model Number:	Tendars
MOQ:	100sqm
Price:	$35/sqm
Packaging Details:	Steel frame wrapped in foam and PE film, PVC cover folded in waterproof bag, export-grade wooden pallet
Payment Terms:	T/T,L/C,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ISO 9001:2015, CE, SGS,TUV

Document:

Frame Construction:

Hard Pressed Extruded Aluminium Alloy 6061/T6

Cover Material:

850gsm Double PVC Coated Polyester

Width Range:

10m – 40m Clear Span

Length Range:

10m To Endless By 3m Bays

Eave Height:

3.0m – 5.0m

Ridge Height:

5.5m – 10.0m

Wind Resistance:

100 Km/h

Snow Load:

0.5 KN/m²

Clear Span Width:

Up To 40m No Columns

Fire Retardancy:

DIN 4102(B1), NFP92 507

Supply Ability:

200sets per Month

Highlight:

Extra Large Span Heavy Duty Tent

25m Clear Span Marquee Construction

900gsm PVC Exhibition Hall Cover

Product Description

Extra Large Clear Span Construction Party Marquee Tent

The Hard pressed extruded aluminium alloy 6061/T6 is a premium heavy duty construction party marquee tent engineered to deliver exceptional structural integrity and long-term reliability. Built with aluminium alloy 6061/T6 and 850gsm pvc laminated polyester, this tent is designed to withstand demanding environmental conditions while providing spacious, weather-protected event space.

Heavy Duty Construction Features

Robust Frame Construction: Heavy duty aluminium alloy 6061/T6 provides superior strength-to-weight ratio and excellent corrosion resistance
Premium Cover Material: 850gsm PVC Laminated Polyester white, block-out, water-proof, UV resistant, EUR fire retardant DIN4102 B1/M2/B1, snow resistance, tear resistance. Temperature resistance(°C): -40°C-70°C.
Wind Resistance: Engineered and tested to withstand wind speeds of Up to 100 km/h with proper anchoring
Snow Load Capacity: Structural design rated for 0.5 kN/m² snow load accumulation
Modular Bay System: Width range 10m - 40m, length extendable 10m - 60m in 3m increments
Professional Engineering: Each structure undergoes computational structural analysis for your specific site conditions
Hot-Dip Galvanized Connectors: All steel connectors and fasteners are hot-dip galvanized to prevent rust
Reinforced Eaves and Ridges: Additional bracing at all critical load transfer points

Heavy Duty Construction Standards

Our heavy duty tent construction adheres to rigorous engineering standards:

Material Selection: Only certified structural-grade aluminum alloy and galvanized steel with full material traceability
Weld Inspection: All welded joints undergo visual and dimensional inspection per ISO 9001 standards
Load Testing: Frame assemblies are subjected to static load testing at 1.5x design load
Cover Testing: PVC fabric tested for tensile strength, tear resistance, and UV aging per ISO 9001
Pre-Delivery Assembly: Complete trial assembly in factory to verify fit, alignment, and structural integrity
Quality Documentation: Mill certificates, test reports, and inspection records provided with each order

Applications

Ideal for outdoor weddings, corporate events, trade exhibitions, music festivals, temporary warehousing, disaster relief shelters, and sports facilities requiring heavy duty structural performance and extended service life.

Technical Specifications

Frame Construction	Aluminium alloy 6061/T6
Cover Material	850gsm PVC Double PVC coated polyester
Width Range	10m - 40m
Length Range	10m to endless
Eave Height	3.0m - 5.0m
Ridge Height	5.5m - 10.0m
Wind Resistance	Up to 100 km/h
Snow Load	0.5 kN/m²

Contact our engineering team for site-specific structural calculations and heavy duty construction specifications.
