| Brand Name: | Tendars |
| Model Number: | Big tent |
| MOQ: | 25 square meters |
| Price: | Reconsideration |
| Packaging Details: | 1, The aluminium frame structure packed into the bubble film 2, the pvc fabric roof cover and sidewalls are packed into the PVC fabric carry bag; 3, Hardware packed into the box. |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
|
Item |
Specification |
|
Clear-span width |
3m - 50m |
|
Eave height |
2.6m /3m/4m/5m/6m or customized |
|
Ridge height |
4.3 - 8m or customized |
|
Roof pitch |
20° |
|
Longest component |
3.7-10.6m |
|
Minimum tent length |
Can be customized |
|
Roof fixing |
Not limited |
|
Main profile |
84x48x3mm/ 122x68x3mm/ 166x88x3mm/ 203x112x4mm/ 204x112x4.5mm/ 256x120x5mm/ 300x125x5mm/ 350x126x6mm/ customized |
|
Max.allowed wind speed |
100km/hour ,0.5kn/ m³ or can be customized |
|
Eave/Ridge connection |
Hot-dip Galvanized steel insert |
|
Materials |
(1) Frame structure: Hard pressed extruded aluminium 6061 /T6(15HW) which can last 15 to 25 years. |
|
(2) Fabric cover: High quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV |
|
|
resistant, tear resistant, self-cleaning ability, etc. |
|
|
(3) Connector: Strong hot-DIP galvanized steel |
|
Item |
Span Width |
Bay Distance |
Eave Height |
Ridge |
Main Profile |
|
Truss Frame-09-06 |
6m |
3m |
2.6m |
3.6m |
84*48*3mm |
|
Truss Frame-09-08 |
8m |
3m |
2.6m |
4m |
84*48*3mm |
|
Truss Frame-09-10 |
10m |
3m |
2.6m |
4.4m |
84*48*3mm |
|
Truss Frame-09-12 |
12m |
5m |
3m |
5m |
122*68*3mm |
|
Truss Frame-09-15 |
15m |
5m |
3m |
5.7m |
166*88*3mm |
|
Truss Frame-09-18 |
18m |
5m |
3-4m |
7.2m |
203*110*4.5mm |
|
Truss Frame-09-20 |
20m |
5m |
4m |
7.4m |
203*110*4.5mm |
|
Truss Frame-09-25 |
25m |
5m |
4m |
8m |
203*110*4.5mm |
|
Truss Frame-09-30 |
30m |
5m |
4m |
8.8m |
254*120*5mm |
|
Truss Frame-09-40 |
40m |
5m |
4m |
10.3m |
300*125*6mm |
|
Truss Frame-09-50 |
50m |
5m |
4m |
12m |
400*120*6mm |

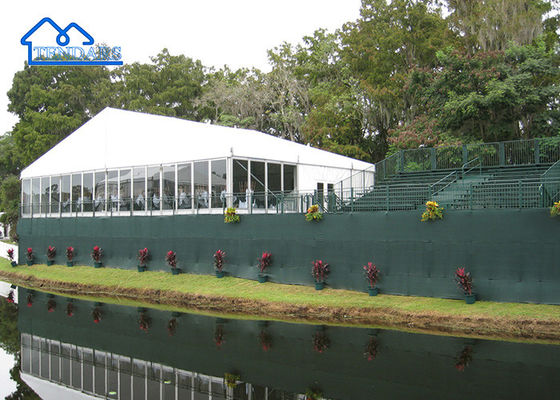

Outdoor Wedding Marquee Tents are versatile and practical solutions for couples seeking to host their wedding celebrations in scenic outdoor locations. These tents offer protection from the elements while allowing couples to create a personalized and unforgettable wedding experience amidst natural surroundings.
|
|
